  Resonator:

   ● Ceramic Reconator

       ● Feature & Applications:

            Small Outline

            Low impedance

            Consumer Applications

Model

Sample

Technical Characteristics

P/N

( XXX =Freq.)

Freq. Range

(MHz)

Freq. Accuracy @25℃

Temp. Stability

-20~+80℃

Aging for

10 years

C1
(pF)

C2
(pF)

Lead No#

Lead Pitch
(mm)

ZTA Series

2.0~32.00MHz

ZTA XXX MG 2.0-4.91

±0.5%

±0.3%

±0.3%

33 33 2 5
ZTA XXX MT 5.0-13.0

±0.5%

±0.3%

±0.3%

33 33 2 5
ZTA XXX MX 13.0-32.0

±0.5%

±0.3%

±0.3%

15 15 2 5
ZTB Series

190~1250KHz

ZTB XXX D 190-249

±1KHz

±0.3%

±0.5%

330 470 2 10
ZTB XXX D 250-374

±1KHz

±0.3%

±0.5%

220 470 2 7.7
ZTB XXX P 375-429

±2KHz

±0.3%

±0.5%

120 470 2 5
ZTB XXX E 430-449

±2KHz

±0.3%

±0.5%

100 100 2 5
ZTB XXX E 450-509

±2KHz

±0.3%

±0.5%

100 100 2 5
ZTB XXX P 510-699

±2KHz

±0.3%

±0.5%

100 100 2 5
ZTB XXX J 700-999

±0.5%

±0.3%

±0.5%

100 100 2 2.5
ZTB XXX MJ 1000-1250

±0.5%

±0.3%

±0.5%

100 100 2 2.5
ZTT Series

2.0~32.00MHz

With Built-in Load Capacitor

ZTT XXX MG 2.0-4.91

±0.5%

±0.3%

±0.3%

-- -- 3 2.5
ZTT XXX MT 5.0-13.0

±0.5%

±0.3%

±0.3%

-- -- 3 2.5
ZTT XXX MX 13.0-32.0

±0.5%

±0.3%

±0.3%

-- -- 3 2.5



  Outline Drawing & Test Circuit

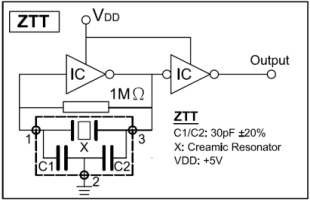

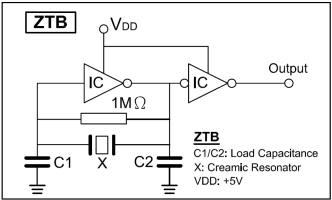

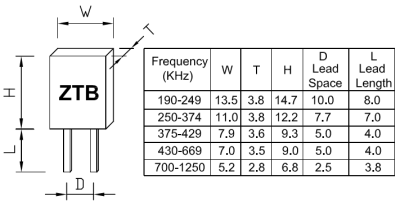

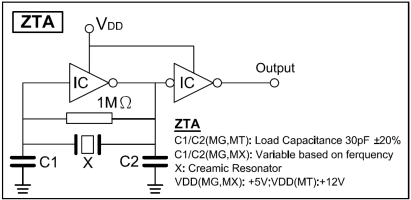

Outline Drawing    (Unit=mm) Test Circuit (For MOS IC)
