  SIP RESISTOR NETWORK :

   ● DIP SIP RESISTOR

Features:

     Small in size with high precision package. It is suitably used in printed circuit.
     Automated machinery mass production and competitive prices accordingly.
     Extremely high stability, accuracy and reliability.

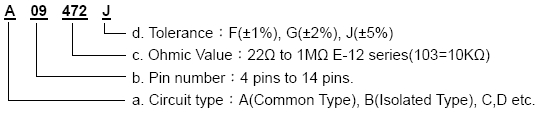

Type Designation:

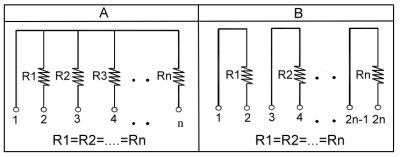

Dimension & Circuit Type:

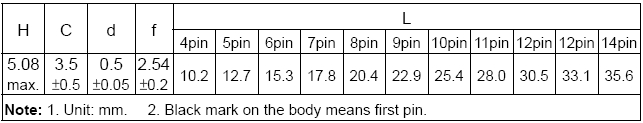

                      Dimension (mm)                                           Circuit Type







Rated Power:

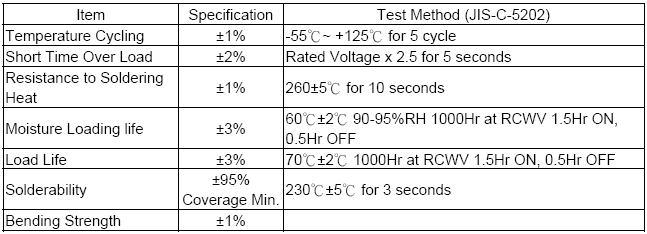

Characteristics:



        RoHS Compliance

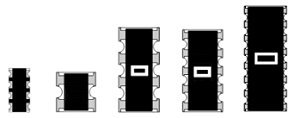

  ● SMD SIP RESISTOR

Features:

     More efficient in pick & place application
     Low assembly costs
     Reducing environmentally hazardous wastes
     High component and equipment reliability
     Saving of PCB space
     None forbidden- materials used in products /production

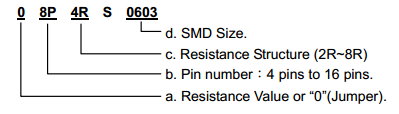

Type Designation:

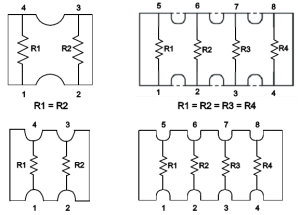

Dimension & Schematic Type



  Size                                                 Schematic

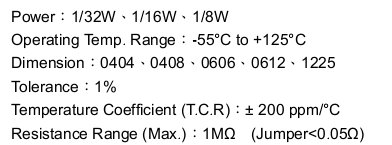

Characteristics:





       RoHS Compliance
